ARIZONA CASE
|
I |
|
H |
|
G |
|
F |
|
E |
|
D |
|
C |
|
B |
|
A |
|

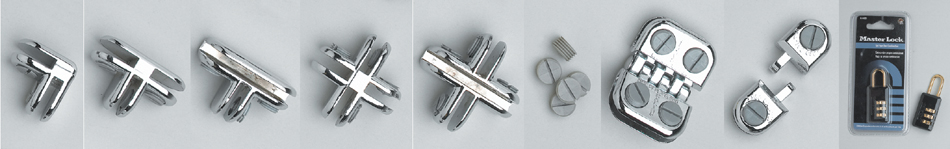

A-I -Connectors |
||
|
A |
SFGC2 | 2-way |
| B | SFGC3 | 3-way |
| C | SFGC3S | 3-way shelf |
| D | SFGC4 | 4-way |
| E | SFGC4S | 4-way shelf |
| F | SFGC-Screw | Fastening screw |
| G | SFGC-Hinge | Hinge |
| H | SFGC-Hasp | Hasp |
| I | SFGC-Lock | Lock |
|

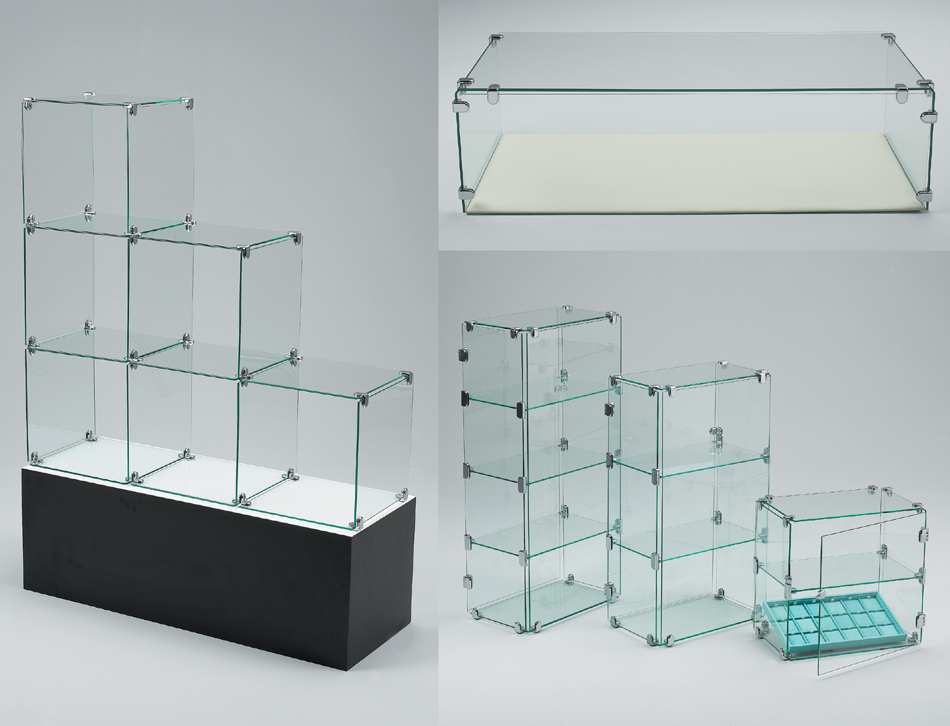

Units Pictured |
||||
| W x D x H | ||||
|
J |
SFGD18 | 36" x 12" x 36" | ||
| 18 pieces - 12" x 12" glass | ||||
|
K |
SFGD04 | 36" x 16" x 10" | ||
| 4 pieces: 2- 10" x 16"; 1- 10" x 36"; 1- 16" x 36" | ||||
| L. | SFGD07 | 16" x 10" x 16" | ||
|
|
7 pieces: 5- 10" x 16"; 2- 16" x 16" | |||
| M. | SFGD08 | ‑ 16" x 10" x 32" | ||
| 8 pieces: 4- 10" x 16"; 2- 10" x 32"; 2- 16" x 32" | ||||
|
N. |
SFGD09 | 16" x 10" x 36" | ||
| 9 pieces: 5- 10" x 16"; 2- 10" x 36"; 2- 16" x 36" | ||||
|
J |
|
K |
|
N |
|
M |
|
L |
